Series UNICAM-R: Protected type equipment with Load Break Switch air insulated


The UNICAM-R series consists of medium-voltage protected compartments for indoor use, which are modular and suitable for the realization of any medium-voltage electric secondary substation layout.
They are made according to the CEI 17.6 Standards to achieve maximum safety, reliability and continuity of operation.

Main features:
- Insulation in air
- Rated voltage up to 24 kV
- Rated busbar current up to 1250 A
- Rated output / input current up to 630 A
- Rated short circuit current up to 16-20 kA
- IP3X degree of protection
- RAL 7030 painting

Other technical and dimensional data are reported in the specific UNICAM-R catalog

VIEW THE CATALOG

Series M6: Protected type equipment with IMS in SF6 GAS


The M6 series is made up of protected medium-voltage compartments for interiors of the modular type and suitable for the realization of any medium-voltage electric secondary substation layout.
The compartments of this series, having smaller dimensions, can be used in confined spaces; furthermore, having the SF6 insulation can be used in environments with more onerous environmental conditions (salt areas, heavy industrial areas, areas with dust).
In addition, the compartments of this series are equipped with internal arc seal for greater safety of the staff responsible for the maintenance of the substation.
They are made according to the CEI 17.6 Standards to achieve maximum safety, reliability and continuity of operation.

Main features:
- Air insulation with IMS in SF6
- Rated voltage up to 24 kV
- Rated busbar current up to 800 A
- Rated output / input current up to 630 A
- Rated short circuit current up to 16-20 kA
- IP3X degree of protection
- RAL 7030 painting
- Internal arc sealing up to 16 kA for 1 s.

Further technical and dimensional data can be found in the specific M6 catalog (*)

VIEW THE CATALOG

ENEL DY803 series: Protected type equipment with IMS in SF6 gas


The ENEL DY 803series is made up of protected medium-voltage compartments for interiors of the modular type and suitable for the realization of the typical Enel equipment to the supply electrict energy to medium voltage users.
They are manufactured according to the CEI 17.6 Standards to achieve maximum safety, reliability and continuity of operation, with the addition of dimensional compliance to the Enel DY 803 specifications and the type approval achieved with all the type tests required by Enel.

Main features:
- Air insulation with IMS in SF6
- Rated voltage up to 24 kV
- Rated busbar current up to 630 A
- Rated output / input current up to 630 A
- Rated short circuit current up to 16 kA
- IP3X degree of protection
- RAL 7030 painting
- Internal arc sealing up to 16 kA for 0.5 s.

Further technical and dimensional data can be found in the specific DY 803 catalog (*)

VIEW THE CATALOG

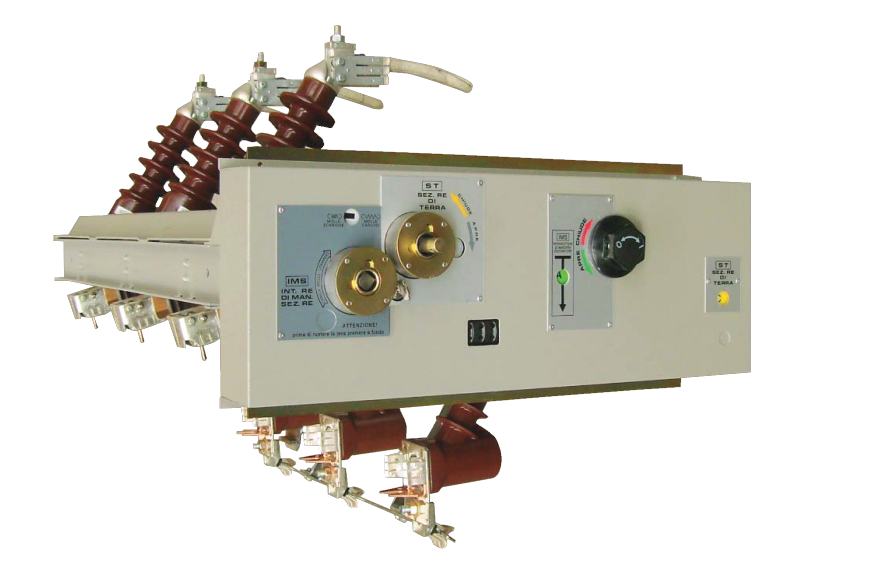

Air insulated switch disconnectors and load break switch


The load break switch and switch disconnectors of this series are designed for easy installation in MV distribution boards.The maintenance and checking operations are extremely simplified for the extractability on guides and for the frontal arrangement of the control.These devices allow complete segregation between the busbar compartment and the lower compartment.

Main features:
- Air insulation
- Voltage up to 24kV
- Bus current up to 630A
- Short-circuit current up to 16kA

Other technical and dimensional data are reported in the specific 24FM-FI catalog (*)

VIEW THE CATALOG

SF6 insulated switch disconnectors and load break switch


The load break switch and switch disconnectors of this series are designed for easy installation in MV distribution boards, with the highest performance of SF6 gas.
The maintenance and checking operations are extremely simplified for the extractability on guides and for the frontal arrangement of the control.These devices allow complete metalic segregation between the busbar compartment and the lower compartment.

Main features:
- SF6 insulation;
- Voltage up to 24kV;
- Bus current up to 630-800A;
- Short-circuit current up to 16-25kA

Switchboard for Primary Compact Substations and Primary Substations


Compact and primary MV switchboards for primary substations equipped with AT / MT transformers dedicated to distribution.

Main features::
- Self-supporting bent press plate structure
- Degree external protection IP30, internal IP20
- Copper omnibus
- Accessibility trought inspection removable doors and panels
- Interlocks between commands and opening doors
- Earthing all structure and movable parts
- Extractable circuit breakers
- Mechanical signal to show open and closing position of circuit breaker and switch disconnector
- Heating resistance for switchboards
- Flap and climbing shaft for overpressure
- User friendly and easy maintenance
- Standard tests- electrical, thermical, mechanical.
- According to standars CEI, IEC

VIEW PHOTOS
